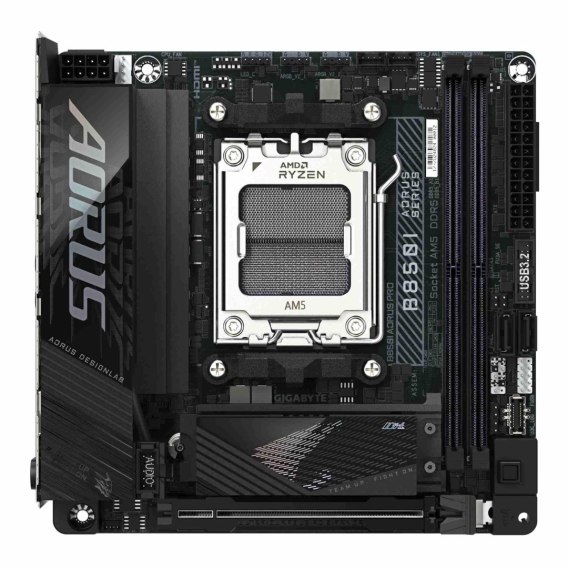

Płyta Gigabyte B850I AORUS PRO /AMD B850/DDR5/SATA3/M.2/USB3.1/PCIe5.0/WiFi/BT/AM5/Mini-ITX

Gniazdo procesora: Socket AM5

Obsługiwane typy procesorów: AMD Ryzen™

Uwagi do procesora: Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Format płyty: Mini-ITX

BIOS: 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset płyty głównej: AMD B850

Ilość złącz pamięci DDR5: 2

Maksymalna wielkość pamięci: 128 GB

Tryb pracy pamięci RAM: Dual Channel

Standard pamięci: DDR5-8400 (OC), DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7950 (OC), DDR5-7900 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7400 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-6400 (OC), DDR5-6200 (OC), DDR5-6000 (OC), DDR5-5800 (OC), DDR5-5600 (OC), DDR5-5200, DDR5-4800, DDR5-4400

Uwagi do pamięci RAM: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Extreme Memory Profile (XMP) memory modules

Zintegrowany kontroler SATA: Chipset+CPU: 2x SATA III 6Gb/s - RAID 0,1 + 2x M.2 - RAID 0,1,5,10

Uwagi do kontrolera SATA: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in, the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 5 is only available on AMD Ryzen™ 9000 Series Processors

Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficznej: HDMI

Uwagi do karty graficznej: Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, and HDR., Support for native HDMI 2.1 TMDS compatible ports., Graphics specifications may vary depending on CPU support

Zintegrowana karta dźwiękowa: Realtek® ALC 4080 2-Channel High Definition Audio CODEC

Gniazda karty dźwiękowej: 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x16: 1

Uwagi do złącz PCI: 1 x PCI Express x16 slot, integrated in the CPU:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD

Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Maksymalna ilość portów USB 2.0: 4

Maksymalna ilość portów USB 3.x: 8

Porty USB na panelu tylnym: 2x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie głównej: 1x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)

Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth: Bluetooth V5.4

Uwagi do WiFi / BT: Support for 11be 160MHz wireless standard, Actual data rate may vary depending on environment and equipment, Wi-Fi 7 features require Windows 11 SV3 to function properly (There is no, support driver for Windows 10), Wi-Fi 7 channels on 6GHz band availability depends on individual country's, regulations

Port PS/2: Brak

Port szeregowy (COM): Brak

Port równoległy (LPT): Brak

Inne porty i gniazda: CPU fan header, CPU fan/water cooling pump header, System fan header, 2x Addressable RGB Gen2 LED connector, Speaker header, Reset jumper, Clear CMOS jumper, Złącze czujnika otwarcia obudowy, Q-Flash Plus button, 2x SMA antenna connectors (2T2R)

Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (mm): 170 x 170

Opakowanie: BOX

Zawiera baterię / akumulator: Tak

Informacje dodatkowe: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup, Support for Windows 11 64-bit, Bundled Software:, - Norton® Internet Security (OEM version), - LAN bandwidth management software
