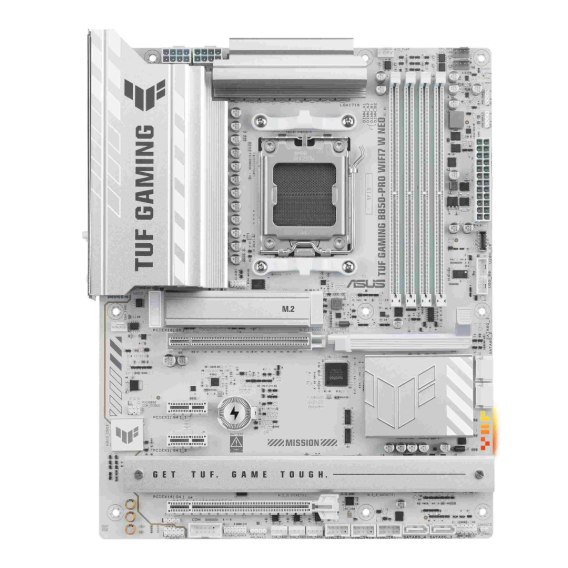

Płyta Asus TUF GAMING B850-PRO WIFI7 W NEO /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/WiFi/BT/AM5/ATX

Gniazdo procesora: Socket AM5

Obsługiwane typy procesorów: AMD Ryzen™ (AM5)

Uwagi do procesora: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Format płyty: ATX

BIOS: 64MB (512Mb) Flash ROM, UEFI AMI BIOS

Chipset płyty głównej: AMD B850

Ilość złącz pamięci DDR5: 4

Maksymalna wielkość pamięci: 256 GB

Tryb pracy pamięci RAM: Dual Channel

Standard pamięci: DDR5-9000+ (OC)

Uwagi do pamięci RAM: 8400+MT/s(OC)/8200+MT/s(OC) with Ryzen™ 9000 Series Processors,, 9000+MT/s(OC)/8600+MT/s(OC) with Ryzen™ 8000 Series Processors,, 8000+MT/s(OC)/8000+MT/s(OC) with Ryzen™ 7000 Series Processors,, ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)

Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SATA: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mo, AMD B850 Chipset:, - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, The M.2_3 slot shares bandwidth with the PCIEX16(G4) slot. When either the, PCIEX16(G4) or M.2_3 slot is occupied, that slot runs at PCIe 4.0 x4 mode., When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter, the BIOS to adjust the default settings as required., AMD RAIDXpert2 Technology:, - Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10

Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficznej: HDMI, DisplayPort

Uwagi do karty graficznej: Available only on processors featuring integrated graphics. Graphics, specifications may vary between CPU types. Please refer to AMD CPU, specifications, Supports max. 8K@30Hz as specified in DisplayPort 1.4., Supports 4K@60Hz as specified in HDMI 2.1

Zintegrowana karta dźwiękowa: Realtek® ALC1220P Codec 7.1-Channel High Definition Audio

Gniazda karty dźwiękowej: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wewnętrzne gniazdo S/PDIF Out

Uwagi do karty dźwiękowej: - Impedance sense for front and rear headphone outputs, - Internal audio Amplifier to enhance the highest quality sound for, headphone and speakers, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - High quality 120 dB SNR stereo playback output and 113 dB SNR recording, input (Line-in), - Supports up to 32-Bit/192 kHz playback, Audio Features:, - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, - Audio cover, - Unique de-pop circuit

Złącza PCI Express x16: 2

Złącza PCI Express x1: 2

Uwagi do złącz PCI: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B850 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), - 2 x PCIe 4.0 x1 slots, Specifications vary by CPU types, The PCIEX16(G4) slot shares bandwidth with the M.2_3 slot. When either the, PCIEX16(G4) or M.2_3 slot is occupied, that slot runs at PCIe 4.0 x4 mode., You can enter the BIOS to adjust the default settings as required.

Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Uwagi do karty sieciowej: TUF LANGuard

Maksymalna ilość portów USB 2.0: 8

Maksymalna ilość portów USB 3.x: 11

Porty USB na panelu tylnym: 2x USB 2.0 + 4x USB 3.0 + 2x USB 3.1 + 2x USB 3.1 Type-C

Gniazda USB na płycie głównej: 3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth: Bluetooth V5.4

Uwagi do WiFi / BT: Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, Wi-Fi features may vary depending on the operating system. For Windows 11,, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11, 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, please note that no driver is available,, please refer to the Wi-Fi chipset vendor's website for details., Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between, countries, The Bluetooth® version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications

Port PS/2: Brak

Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM

Port równoległy (LPT): Brak

Inne porty i gniazda: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable RGB Gen 2 headers, Chassis intrusion header, Front Panel Audio header (F_AUDIO), 10-1 pin Front Panel System header, Thunderbolt™ (USB4®) header

Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (mm): 305 x 244

Opakowanie: BOX

Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x TUF Gaming sticker, 2 x M.2 rubber packages, 1 x Quick start guide

Zawiera baterię / akumulator: Tak

Informacje dodatkowe: Operating System: Windows 11, Manageability: WOL by PME, PXE
