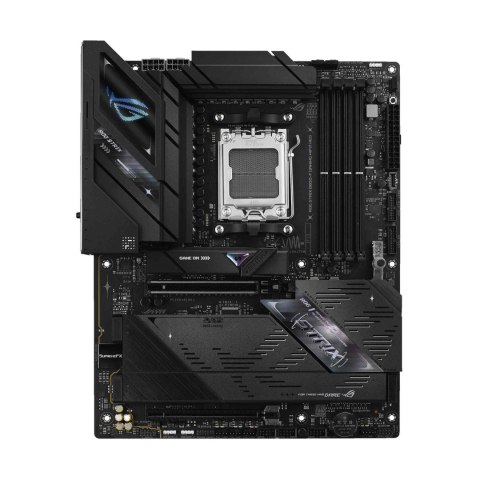

Płyta Asus ROG STRIX B850-F GAMING WIFI7 NEO /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/WiFi/BT/AM5/ATX

Gniazdo procesora: Socket AM5

Obsługiwane typy procesorów: AMD Ryzen™ (AM5)

Uwagi do procesora: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Format płyty: ATX

BIOS: 64 MB (512MB) Flash ROM, UEFI AMI BIOS

Chipset płyty głównej: AMD B850

Ilość złącz pamięci DDR5: 4

Maksymalna wielkość pamięci: 256 GB

Tryb pracy pamięci RAM: Dual Channel

Standard pamięci: DDR5-9000+ (OC)

Uwagi do pamięci RAM: ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)

Zintegrowany kontroler SATA: Chipset+CPU: 2x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 (Key M), type 2280 (supports PCIe 5.0 x4 mode), AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8500 & 8300 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode), AMD B850 Chipset:, - M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4), - M.2_4 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4), 2 x SATA 6Gb/s ports, The M.2_3 slot shares bandwidth with the PCIEX16(G4) slot. When the, PCIEX16(G4) slot is operating, the M.2_3 slot will be disabled, AMD RAIDXpert2 Technology:, - Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10

Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficznej: HDMI

Uwagi do karty graficznej: Available only on processors featuring integrated graphics. Graphics, specifications may vary between CPU types. Please refer to AMD CPU, specifications, Supports 4K@60Hz as specified in HDMI 2.1

Zintegrowana karta dźwiękowa: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazda karty dźwiękowej: 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej: - Impedance sense for front and rear headphone outputs, - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, - High quality 120 dB SNR stereo playback output and 110 dB SNR recording, input, - Supports up to 32-Bit/384 kHz playback on front panel, Audio Features:, - SupremeFX Shielding Technology, - Savitech SV3H712 AMP, - Rear optical S/PDIF out port, - Premium audio capacitors, - Audio cover

Złącza PCI Express x16: 2

Uwagi do złącz PCI: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slots (supports x8 mode), AMD Ryzen™ 8500 & 8300 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slots (supports x4 mode), AMD B850 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode)**, Specifications vary by CPU types, PCIEX16(G4) (supporting x4 mode) from AMD B850 Chipset shares bandwidth, with M.2_3

Port LAN: 1x 5 Gigabit LAN Realtek®

Uwagi do karty sieciowej: ASUS LANGuard

Maksymalna ilość portów USB 2.0: 10

Maksymalna ilość portów USB 3.x: 15

Porty USB na panelu tylnym: 4x USB 2.0 + 5x USB 3.0 + 1x USB 3.0 Type-C + 2x USB 3.1 + 2x USB 3.1 Type-C

Gniazda USB na płycie głównej: 3x USB 2.0 (6 portów) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth: Bluetooth V5.4

Uwagi do WiFi / BT: Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, Wi-Fi features may vary depending on the operating system. For Windows 11,, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11, 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, please note that no driver is available,, please refer to the Wi-Fi chipset vendor's website for details., Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between, countries, The Bluetooth® version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications

Port PS/2: Brak

Port szeregowy (COM): Brak

Port równoległy (LPT): Brak

Inne porty i gniazda: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x AURA Addressable Gen 2 headers, CPU Over Voltage jumper, Front Panel Audio header (F_AUDIO), 10-1 pin Front Panel System header, Start button, Thermal Sensor header, Thunderbolt™ (USB4®) header

Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (mm): 305 x 244

Opakowanie: BOX

Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 3 x M.2 rubber packages, 1 x M.2 backplate rubber package, 1 x Quick Start Guide

Zawiera baterię / akumulator: Tak

Informacje dodatkowe: Operating System: Windows 11, Manageability: WOL by PME, PXE
